Aluminum Casement Window​

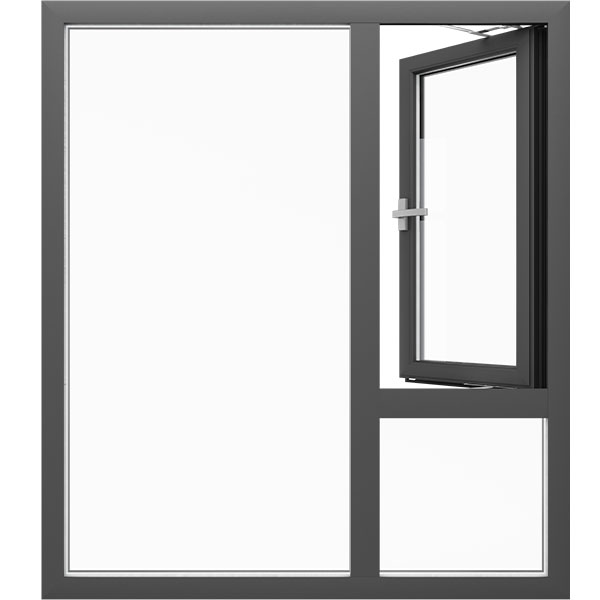

A casement window is hinged on one side and swings outward. It opens and closes with a crank or Easy-Slide Operator. PA offers various types including triple casement windows, French casement windows, and models with blinds. Our aluminum casement windows can be fully customized in color, size, lattice, and glass options.
What Are Casement Windows?
A casement window is a type of window that is hinged on one side and opens inward or outward, typically operated by hinge mechanism. It provides excellent ventilation and allows for unobstructed views when fully opened.
PA’s casement aluminum windows are known for their energy efficiency, as they create a tight seal when closed. They are commonly used in both residential and commercial buildings.
View More Aluminum Casement Window Series
Our aluminum casement windows are adaptable any project. We have frame solutions for new and existing construction.
PA's Aluminum Casement Window Features
| Profile Thinckness | 1.6mm |
| Opening Way | Outward Opening / Awning |
| Handle | HOPPE Handle in Black and Sliver |
| Hinge | GU Hinge |
| Lock Point | Black Two Point Lock |
| Window Type | Casement Window | Window Opening Style |
| U-value (Differ by Glass Types) | 1.1-2.8 W/m²K |
 |
| Water Tightness | 700 Pa | |
| Wind Load Capacity | 5000 Pa | |
| Noise Reduction | ≤ 38 dB | |
| Aluminum Anti -fall Rope Bear Weight | 150 KG |
| Hardware Name | Casement Window | Window Opening Style |
| U-value (Differ by Glass Types) | Laminated Glass , Triple Glass,Low-E Glass, and Reflective Glass |  |
| Handle | Fingerprint Handle/Password Handle/Key Handle | |
| Hidden Accessories | Hidden Accessories For Awning | |
| Heat Insulation | Insulation Cotton |
Thermal insulation performance
AS/NZS44201 standard:
Uw1.4W/m2K
Wind pressure resistance
AS/NZS4420.1 standard:
±4000Pa
Watertight performance
AS/NZS44201 standard:
600Pa
Sound insulation performance
ISO717 standard:
Rw37dB
Why Choose Aluminum Casement Window?
- Excellent ventilation: free to open and close, allowing full utilization of side winds.
- Energy efficient: tightly closed to minimize energy loss.
- Clear view: large glass panels provide an unobstructed view.
- Enhanced security: Built-in locks make it difficult to be opened by external forces.
- Easy to use: knob operating system, easy to open and close.
- Versatile design: a variety of styles and materials to adapt to different home styles.
Aluminium Casement Window | Thermal Insulation
Our design incorporates a thermally non-conductive barrier within the aluminum casement window frame, interrupting the heat transfer path through the metal. This feature significantly increases the window's ability to maintain indoor temperatures by reducing winter heat loss and summer heat gain, helping to improve energy efficiency and comfort in all climates. These window combine functionality with elegant design, often with customizable options to fit a variety of architectural styles.
Aluminium Casement Window | Limit Opening Width
PA's aluminum swing window is designed with a feature to limit the opening width, enhancing safety and control. This design is perfect for spaces where window size or safety concerns necessitate restricted opening.
Aluminium Casement Window |
Top Hardware
The design of the handshaker is simple and generous; the handle can be folded; and the design sense is full. Our out swing windows with handles on the sides make them more waterproof and hurricane-resistant. Handshakes and side locks are more convenient and safer during use.
FAQ about Aluminum Casement Windows
Aluminium casement windows are known for their durability, lightweight design, and excellent thermal performance. They provide superior weather resistance, making them ideal for various climates. Additionally, aluminium is a low-maintenance material that resists rust and corrosion. The wide opening angle of casement windows allows for maximum ventilation and clear views.
While aluminium window frames offer many benefits, they also come with a few disadvantages. They can conduct heat and cold, potentially reducing energy efficiency unless they are thermally broken or have additional insulation. Aluminium frames can also be more expensive than other materials, and their appearance may not offer the same aesthetic warmth as wooden frames.
Casement windows may require more maintenance than other window types, as the hinges and hardware can wear out over time. Additionally, because they open outward, they can be obstructed by nearby objects, such as plants or outdoor furniture, limiting their functionality in certain areas. In some cases, they may also be less secure than fixed or sliding windows if not properly locked.
The cost of an aluminium casement window can vary widely depending on the size, design, and quality of the materials. On average, prices range from $200 to $1,000 per window. Custom sizes, higher-quality finishes, and additional features, like energy-efficient glazing, can increase the cost significantly.
Yes, aluminium casement windows can be energy-efficient, especially if they feature thermal breaks or double-glazed glass. The casement style also provides a tight seal when closed, reducing drafts and improving insulation. Adding energy-efficient glazing can further enhance their thermal performance.
